Paper Roll Container Loading Guide for Jumbo Rolls

A jumbo paper roll may look rugged, but in transit it behaves like high-value precision cargo. Its weight, round shape, and sensitivity to humidity make it vulnerable to crushing, shifting, condensation, and deformation long before it reaches the pressroom. During ocean, rail, and truck movement, even small errors in clamp pressure, container condition, or blocking can turn a shipment into rejected stock or a costly insurance claim. This guide explains how to approach paper roll container loading with a practical, risk-based mindset, covering moisture prevention, handling controls, dunnage requirements, and the loading practices that help rolls arrive clean, dry, round, and ready for production.

Why Paper Roll Container Loading Matters

Jumbo paper rolls present unique logistical challenges in global supply chains. Due to their immense weight, cylindrical shape, and extreme sensitivity to environmental conditions, transporting them requires rigorous planning. Proper container loading is the primary defense against significant cargo damage during ocean freight, rail transit, and over-the-road trucking.

Prevent moisture, handling, and transport damage

Paper is highly hygroscopic, readily absorbing and releasing moisture from the surrounding air. When a standard 20-foot or 40-foot container crosses different climate zones, temperature fluctuations (often ranging from 10°C to 45°C) cause severe condensation, commonly known as container rain. If this moisture reaches the unprotected paper, it causes edge swelling, warping, and a permanent loss of tensile strength. The handling process itself also introduces risks. Specialized forklifts equipped with paper roll clamps must be carefully calibrated; applying incorrect clamp pressure can crush the roll before it even enters the container. Operators must consult specific manufacturer clamp pressure guidelines (typically ranging from 1,500 to 3,000 PSI) based on the paper grade.

Additionally, the sheer mass of jumbo rolls makes them highly susceptible to mechanical damage. A standard commercial roll often weighs between 1.5 and 3.0 metric tons, with diameters frequently reaching 100 to 150 centimeters. Sudden braking, rail shunting, or ship roll can cause unsecured cargo to shift violently. This movement frequently leads to telescoping, where the inner layers of the roll push outward like a spyglass, rendering the paper completely unusable for automated machinery.

Reduce claims, quality losses, and commercial risk

The financial consequences of improper loading extend far beyond the base cost of replacing the damaged paper. A single damaged jumbo roll of specialty, thermal, or coated fine paper carries a high commercial value, often ranging from $1,000 to $2,500+ per metric ton, depending on market conditions. When rolls arrive with crushed cores, edge abrasions, or ovality deformations exceeding exacting tolerance thresholds (often as tight as 3 to 5 millimeters), high-speed commercial printing presses cannot mount them.

This inability to process the paper leads to severe downstream consequences:

• Total shipment rejection: Immediate refusal of the cargo at the receiving dock, often incurring a 100% loss of product value.
• Costly insurance claims: Triggering complex marine insurance investigations and potential premium hikes of 10% to 20%.
• Expensive reverse logistics: The need to transport, dispose of, or recycle the ruined stock at additional per-ton costs.
• Manufacturing disruptions: Severe delays in commercial printing and production schedules, leading to missed SLA penalties.

By implementing standardized, data-driven container loading protocols, suppliers can drastically reduce these commercial risks and ensure the cargo arrives in press-ready condition.

Packaging, Container, and Dunnage Requirements

Securing paper rolls effectively requires a systematic approach to both the primary packaging of the product and the physical condition of the shipping container. Without proper barrier materials and a carefully controlled internal environment, even the most robust blocking and bracing techniques will fail to protect the paper from degradation.

Use kraft wrap, stretch film, end protectors, and pallets

Primary packaging serves as the first line of defense against physical and environmental threats. Manufacturers must utilize heavy-duty kraft wrapper layers (typically 2- to 4-ply) combined with stretch film to seal out ambient moisture and dust. Industrial-grade polyethylene (PE) stretch film (20 to 30 microns thick) provides an excellent vapor barrier. However, PE film can trap internally generated condensation if rolls are loaded warm or with high moisture content. Always verify paper temperature and moisture equilibrium before sealing. Furthermore, rigid end protectors made from compressed fiber or heavy-duty plastic are essential to shield the vulnerable roll edges from strap damage and floor friction.

True jumbo rolls are almost always floor-loaded due to their immense, concentrated core weight. Palletization should generally be limited to smaller converted rolls or specific customer requirements. When required, palletizing elevates the cargo away from potential floor moisture but necessitates specialized wooden pallets designed to support the localized weight of the paper core without splintering under pressure.

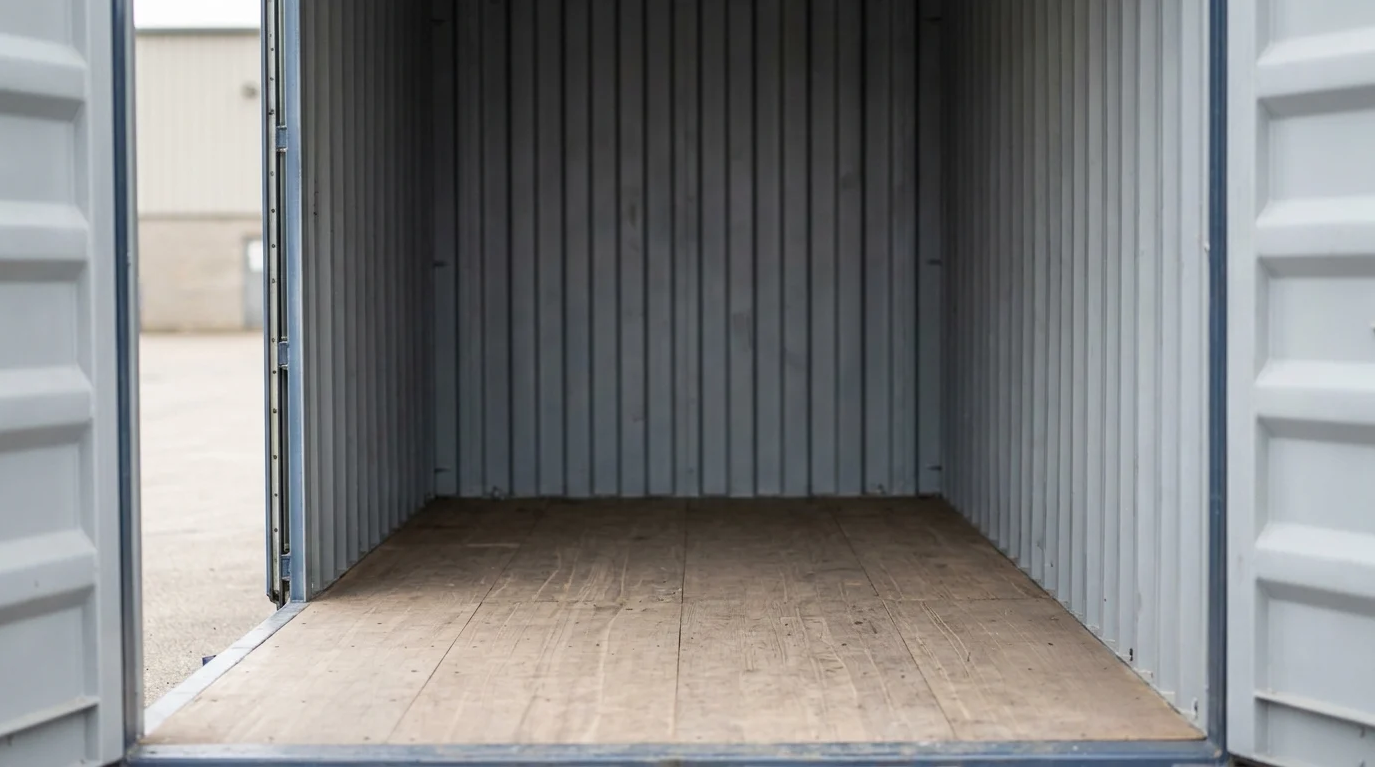

Inspect containers and control humidity before loading

Before any cargo crosses the container threshold, a rigorous inspection of the shipping unit is mandatory. Shippers must select cargo-worthy, clean, and dry Grade A containers that are completely free of structural defects, rust holes, or damaged rubber door seals. Logistics teams should perform a light test by entering the container and having the doors temporarily closed behind the inspector to ensure 0% daylight penetrates the seams.

A critical metric is the moisture content of the wooden container floor. Inspectors generally verify that the floor moisture reads below standard carrier limits (strictly <18%), as anything higher risks releasing significant water vapor during transit. It is equally important to test the paper rolls’ own moisture content (typically 4% to 7%) before loading, since hygroscopic cargo is often the primary moisture source inside a sealed container independent of floor or ambient humidity. To actively control humidity, logistics teams should install high-capacity desiccants. Standard industry practice dictates hanging appropriate quantities of calcium chloride desiccant (typically 6 to 8 kg per 20-foot container). These requirements scale proportionally for 40-foot units (12 to 16 kg), with the exact mass adjusted based on route variations, voyage length, and manufacturer guidelines.

Paper Roll Container Loading Steps

The physical loading process is where packaging and planning translate into actual cargo security.

Key Takeaways

• Inspect and prepare every container for moisture risk because temperature swings from about 10°C to 45°C can create condensation that damages unprotected paper.
• Use calibrated paper roll clamps and follow manufacturer pressure guidance, typically around 1,500 to 3,000 PSI depending on the paper grade.
• Block and brace jumbo rolls securely because rolls weighing 1.5 to 3.0 metric tons can shift violently during braking, rail shunting, or vessel movement.
• Protect roll edges, cores, and roundness because ovality deviations as small as 3 to 5 millimeters can make rolls unsuitable for high-speed presses.
• Treat loading quality as a commercial risk control, since damaged specialty or coated paper can be worth $1,000 to $2,500+ per metric ton and may trigger rejection or claims.

Frequently Asked Questions

Why are jumbo paper rolls difficult to ship in containers?

They are heavy, cylindrical, moisture-sensitive, and prone to movement. A single roll can weigh 1.5 to 3.0 metric tons, so poor blocking, bracing, or handling can cause crushing, telescoping, edge damage, or deformation.

What causes container rain during paper roll transport?

Container rain occurs when temperature swings inside a container cause moisture to condense on walls or ceilings. During long routes across climate zones, temperatures may shift from about 10°C to 45°C, creating a high risk of condensation.

How does moisture damage paper rolls?

Paper absorbs moisture from the air. If condensation reaches the roll, it can cause edge swelling, warping, reduced tensile strength, and quality loss that may make the roll unusable for converting or printing.

What forklift equipment should be used for jumbo paper rolls?

Paper roll clamps should be used instead of standard forks. Clamp pressure must be set according to the paper grade and manufacturer guidance, often within a range of 1,500 to 3,000 PSI.

What is telescoping in paper roll shipments?

Telescoping happens when the inner layers of a roll shift outward from the roll body, often due to sudden braking, rail shunting, ship movement, or poor cargo restraint. It can make the roll unusable.
